Abracore supplies orifice plates and choke components for flow restriction, pressure reduction, and process measurement applications. Our alloy components are selected for demanding pressure, abrasive flow, and corrosive service conditions.

The appropriate plate configuration, bore, thickness, and material depend on the intended function and operating duty.

Our Product Range

Available configurations include:

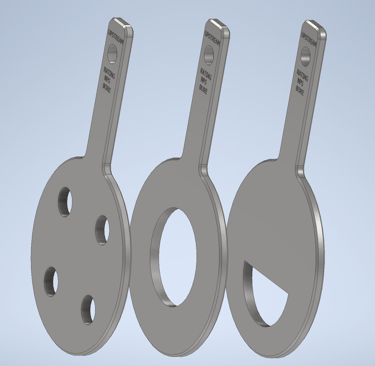

  • Concentric orifice plates.

  • Eccentric orifice plates.

  • Segmental orifice plates.

  • Custom orifice and choke configurations.

Sizes and Manufacturing Options

We supply DN and custom sizes to suit project requirements, with thicknesses up to 100 mm. Final dimensions and material selection are assessed against the application and component design. Our capabilities include reverse engineering, custom fabrication, and material selection support for replacement components and new installations.

Define the Operating Duty

When requesting a quotation, identify whether the component is intended for restriction, pressure reduction, or measurement. Provide the process fluid, flow range, upstream and downstream pressures, operating temperature, pipe size, and connection details.

For slurry applications, include solids concentration and particle information where available. For replacements, attach the existing drawing, bore size, thickness, material specification, and details of any wear or performance concerns.

Contact our team for reliable, high-performance orifice and choke components for your plant.

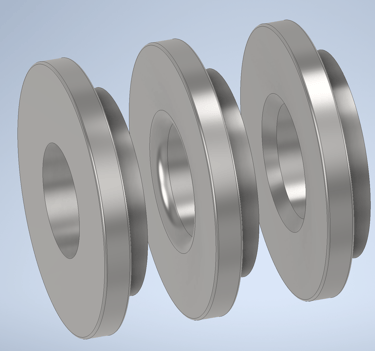

Flow Restriction Orifice Plates and Chokes Supplier, Orifice Plates Hydraulic Sizing
